Foundation Moisture Problems (Lateral Infiltration): Causes, Risks & Solutions

Lateral infiltration is one of the most underestimated moisture problems in residential buildings. It occurs when groundwater or rainwater presses horizontally against the foundation and then seeps through the foundation wall or under the floor. It is not rising damp and not condensation — it is a pressure‑driven moisture problem.

This guide explains how lateral infiltration develops, how to recognise it, and which solutions are truly effective.

1. What Is Lateral Infiltration?

Lateral infiltration refers to moisture that:

• pushes from the outside toward the inside

• penetrates horizontally through the foundation wall

• or enters beneath the ground floor

It is most common in:

• older homes without waterproof foundations

• houses with poor drainage

• buildings in clay or peat areas

• properties with high groundwater levels

• walls below ground level exposed to rainwater

2. How Does Lateral Infiltration Occur?

There are four main mechanisms.

1. Groundwater pressure (hydrostatic pressure)

When the groundwater level rises, pressure builds up against:

• foundation walls

• basement walls

• ground‑bearing concrete floors

Concrete and masonry are not waterproof — water always finds a path.

2. Rainwater accumulating against the foundation

Many gardens and driveways slope towards the house instead of away from it. This causes:

• water to remain against the foundation

• infiltration through pores and joints

• damp interior walls

3. Poor or missing drainage

Many older homes have:

• no drainage

• clogged drainage pipes

• incorrectly installed drainage systems

This allows water to remain in contact with the foundation for long periods.

4. Damaged or missing moisture barriers

Common in older buildings:

• missing damp‑proof course

• deteriorated bitumen coatings

• no protective membrane

This allows water to penetrate horizontally.

3. How to Recognise Lateral Infiltration

Typical symptoms:

• damp patches on foundation walls

• moisture at the wall–floor junction

• mould or moss on interior foundation walls

• peeling paint or plaster

• white salt deposits (efflorescence)

• wet skirting boards

• musty smell in basements or ground floors

• water ingress during heavy rainfall

Important distinction:

With lateral infiltration, the lower parts of the wall are wet, but not necessarily the upper parts. With rising damp, moisture moves upward from the ground.

4. Risks of Lateral Infiltration

1. Mould growth

Moist foundation walls create ideal conditions for mould.

2. Damage to masonry and concrete

Long‑term saturation can cause:

• frost damage

• concrete deterioration

• weakening of the foundation

3. Health issues

Moisture and mould spores affect indoor air quality.

4. Wood rot in floors and beams

Moisture migrates into timber components.

5. Energy loss

Wet walls conduct cold more easily → higher heating costs.

6. Structural damage

Persistent water pressure can cause cracks in the foundation.

5. Solutions for Lateral Infiltration

The right solution depends on the cause and the building structure. Below are the most durable solutions, starting with the exterior.

A. Exterior Solutions (Most Effective)

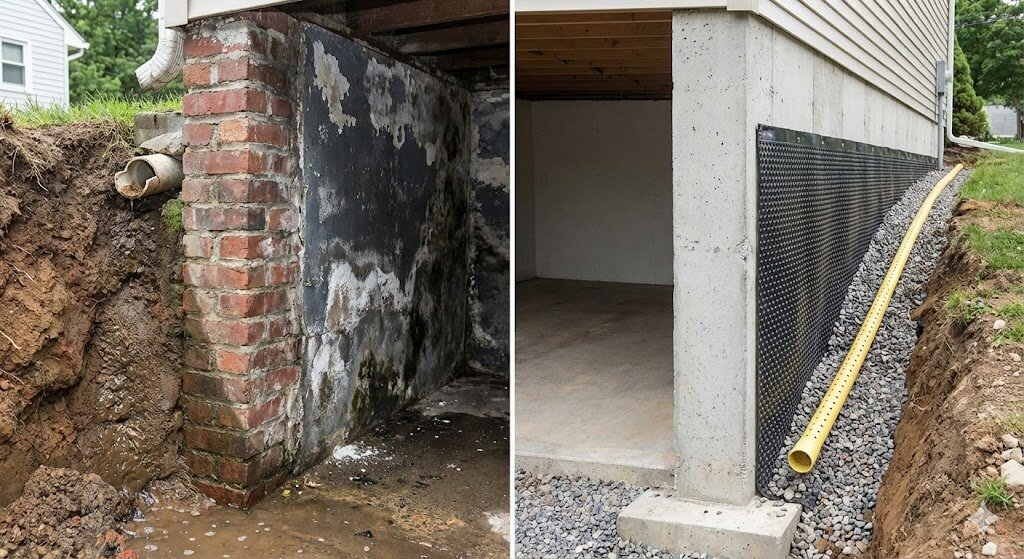

1. Perimeter drainage system

A proper drainage system includes:

• perforated drainage pipe at correct depth

• gravel bed

• geotextile fabric

• discharge to a ditch or pump well

Benefits:

• reduces water pressure

• prevents water accumulation

• long‑term effectiveness

2. Excavating the foundation + waterproof coating

The foundation wall is:

• excavated

• cleaned

• coated with bituminous or cement‑based waterproofing

• protected with membrane or dimpled sheet

This is the gold standard for lateral infiltration.

3. Adjusting garden or paving slope

Water must flow away from the house, not towards it.

B. Interior Solutions (When Exterior Work Is Not Possible)

1. Interior waterproofing (basement tanking)

This includes:

• cement‑based waterproof coatings

• capillary‑blocking layers

• crystalline waterproofing systems

Benefits:

• works even under high water pressure

• ideal when exterior excavation is impossible

2. Injection systems in the foundation wall

Suitable for:

• cracks

• leaking joints

• localised infiltration

Materials:

• polyurethane resin

• epoxy

• gel injections

3. Interior drainage system (perimeter drain)

For severe water pressure:

• drainage channel along interior perimeter

• sump pump installation

• discharge to sewer or drainage system

Common in basements.

C. Solutions for Contributing Factors

1. Repairing foundation cracks

Cracks are often the weakest entry point.

2. Removing moisture‑absorbing materials

Such as:

• wet insulation

• damp timber beam ends

• saturated plaster

3. Improving ventilation

Helps prevent mould, but does not stop infiltration.

6. Common Mistakes

• relying only on interior waterproofing → water pressure remains

• drainage installed too high or incorrectly

• using dimpled membrane without waterproof coating → ineffective

• ventilation as the only solution → does not stop infiltration

• misdiagnosing rising damp as lateral infiltration

• garden sloping toward the house

7. Summary

Lateral infiltration is caused by:

• groundwater pressure

• rainwater against the foundation

• poor drainage

• missing moisture barriers

Key insights:

• foundations are not waterproof

• exterior solutions are the most effective

• interior waterproofing is a good alternative when exterior work is impossible

• drainage is essential

• correct diagnosis determines the right solution
